Gold Recovery Gravity Spiral Chute Separator for Gold Mining Spiral Chute

FOB Reference Price:Get Latest Price
US $250-4,000 / Set | 1 Set/Sets for Spiral Chute Separator for Gold Mining (Min. Order)
Supply Ability:
150 Set/Sets per Month for Spiral Chute Separator for Gold Mining
Port:
Xiamen, Shenzhen, Shanghai for Spiral Chute Separator for Gold Mining
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Sprial Separator
Production Capacity:
60-90%
Place of Origin:
Jiangxi, China (Mainland)
Brand Name:
Jinshibao- Spiral Chute Separator for Gold Mining
Model Number:
5LL-1500 Spiral Chute Separator for Gold Mining
Voltage:
Without Power
Power(W):
Without Power
Dimension(L*W*H):
1560*1560*5260mm (5ll-1500)
Weight:
800kg
Certification:
CE&ISO9001
Warranty:
One Year, One year excluding spare parts
After-sales Service Provided:
Engineers available to service machinery overseas
Benificiation Ores:
iron, tin, tungsten, tantalum, niobium, gold, coal etc
Installation Service:
Video or technical support
Sample Test:
Available
Capacity:
6-8t/h
Feedind Size:
0.37-0.8mm
Enrichment Ratio:
50 times
External dia(mm):
400-2000
After sale service:
Lifelong
Spiral surface:
Polyurethane and corundom mixture
Packaging & Delivery
Packaging Details
Export Container for Spiral Chute Separator for Gold Mining
Delivery Time
Shipped in 7 days after payment

Gold Recovery Gravity Spiral Chute Separator for Gold Mining

Gold Recovery Gravity Spiral Chute Separator for Gold Mining

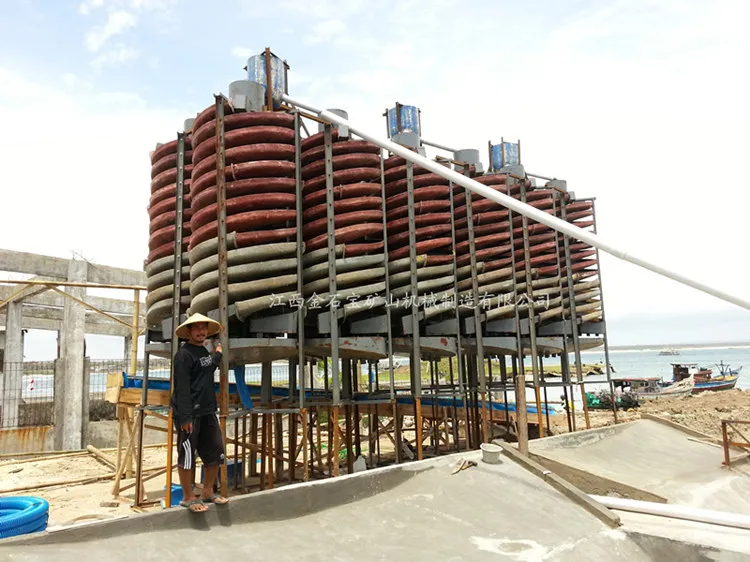

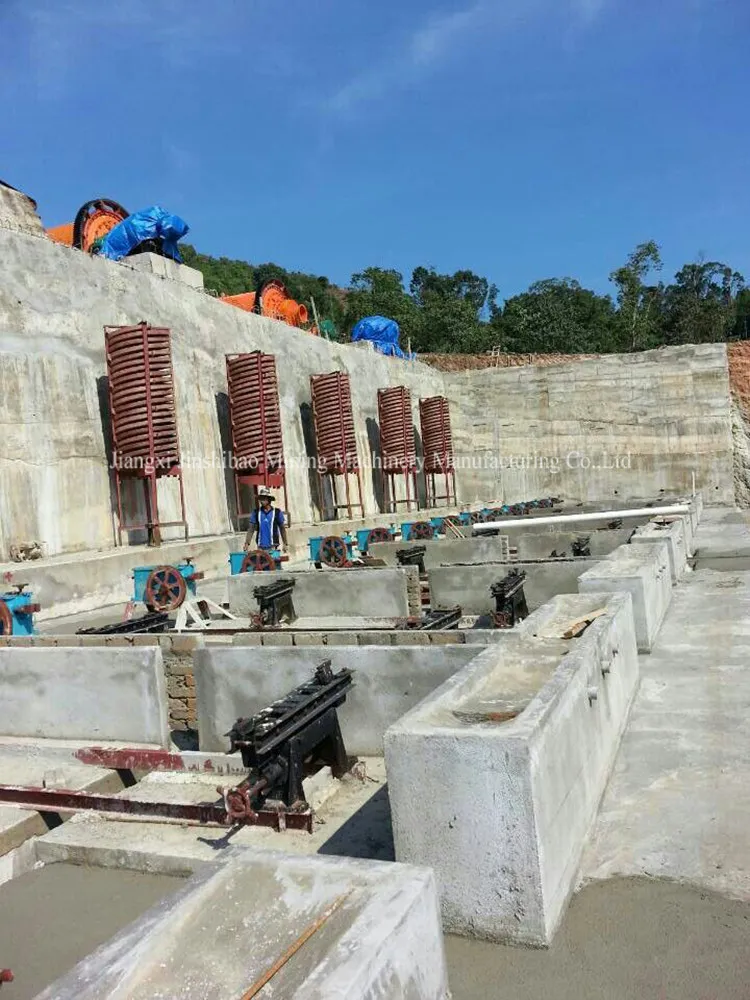

1. Mining site applied in South east Asia
Gold Recovery Gravity Spiral Chute Separator for Gold Mining
In Penang
Gold Recovery Gravity Spiral Chute Separator for Gold Mining
In Indonisia
Gold Recovery Gravity Spiral Chute Separator for Gold Mining

2. Principle and Application of Gravity Spiral Chute Separator for Gold Mining

Gold Recovery Gravity Spiral Chute Separator for Gold Mining

    Gravity Spiral Chute Separator for Gold Mining is new equipment with the domestic advanced level, successfully invented by Beijing General Research Institute of Mining and Metallurgy. It is applied for processing iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon and other metal, nonmetal minerals with enough specific gravity dispersion of granularity ranged from 0.02 to 0.3mm.



Gold Recovery Gravity Spiral Chute Separator for Gold Mining

 Gold Recovery Gravity Spiral Chute Separator for Gold Mining
 Working condition
 Gold Recovery Gravity Spiral Chute Separator for Gold Mining

  Gold Recovery Gravity Spiral Chute Separator for Gold Mining

3. Descriptions of Gravity Spiral Chute Separator for Gold Mining

Gold Recovery Gravity Spiral Chute Separator for Gold Mining

     Gravity Spiral Chute Separator for Gold Mining is our company's concentrating scientific product, good for concentrating sand ore in beach, riverside, seashore and stream

 Gold Recovery Gravity Spiral Chute Separator for Gold Mining
    The product is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; The advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.

  Gold Recovery Gravity Spiral Chute Separator for Gold Mining

 Gold Recovery Gravity Spiral Chute Separator for Gold Mining

 4. Structure of Gravity Spiral Chute Separator for Gold Mining

 Gold Recovery Gravity Spiral Chute Separator for Gold Mining

1. Channel steel support  2. Feeding box  3. Helical sluice

4. Product separator  5. Collector  6. Distributor





Gold Recovery Gravity Spiral Chute Separator for Gold Mining

5. Technical Specifications of Gravity Spiral Chute Separator for Gold Mining

Gold Recovery Gravity Spiral Chute Separator for Gold Mining

Model

5LL-2000

5LL-1500

5LL-1200

5LL-900

5LL-600

5LL-400

Feeding size(mm)

4-0.04

0.8-0.037

0.3-0.03

0.3-0.03

0.2-0.02

0.2-0.02

Feeding density(%)

20-45

25-50

25-55

25-55

25-55

25-55

Capacity(t/h)

15-40

6-8

4-6

2-3

0.8-1.2

0.1-0.2

Size

Length

(mm)

2300

1560

1360

1060

700

460

Width

(mm)

2300

1560

1360

1060

700

460

Height

(mm)

6500

5230 / 4360

5230/4360

4000

2150

1500

Weight(kg)

1400

800

600

450

350

140

Gold Recovery Gravity Spiral Chute Separator for Gold Mining

Though we have the model 5LL-2000 Gravity Spiral Chute Separator for Gold Mining, we still suggest you to take 5LL-1500 Gravity Spiral Chute Separator for Gold Mining as it is with a better performance.

Gold Recovery Gravity Spiral Chute Separator for Gold Mining

6. Features of Gravity Spiral Chute Separator for Gold Mining

  • Non-required power
  • Simple installation and Minimal maintenance requirements
  • Strong adaptability to fluctuation of feeding amount, density, size and grade.
7. The most popular models Gravity Spiral Chute Separator for Gold Mining

Gold Recovery Gravity Spiral Chute Separator for Gold Mining

5ll-900 Spiral Chute                                       5ll-1200 Spiral Chute




Packaging & Shipping



LCL for Gravity Spiral Chute Separator for Gold Mining





FCL  for Gravity Spiral Chute Separator for Gold Mining
